Structural/functional analysis of the human OXR1 protein: identification of exon 8 as the anti-oxidant encoding function
© Murphy and Volkert; licensee BioMed Central Ltd. 2012
Received: 30 November 2011
Accepted: 24 July 2012
Published: 8 August 2012
The human OXR1 gene belongs to a class of genes with conserved functions that protect cells from reactive oxygen species (ROS). The gene was found using a screen of a human cDNA library by its ability to suppress the spontaneous mutator phenotype of an E. coli mutH nth strain. The function of OXR1 is unknown. The human and yeast genes are induced by oxidative stress and targeted to the mitochondria; the yeast gene is required for resistance to hydrogen peroxide. Multiple spliced isoforms are expressed in a variety of human tissues, including brain.
In this report, we use a papillation assay that measures spontaneous mutagenesis of an E. coli mutM mutY strain, a host defective for oxidative DNA repair. Papillation frequencies with this strain are dependent upon a G→T transversion in the lacZ gene (a mutation known to occur as a result of oxidative damage) and are suppressed by in vivo expression of human OXR1. N-terminal, C-terminal and internal deletions of the OXR1 gene were constructed and tested for suppression of the mutagenic phenotype of the mutM mutY strain. We find that the TLDc domain, encoded by the final four exons of the OXR1 gene, is not required for papillation suppression in E. coli. Instead, we show that the protein segment encoded by exon 8 of OXR1 is responsible for the suppression of oxidative damage in E. coli.
The protein segment encoded by OXR1 exon 8 plays an important role in the anti-oxidative function of the human OXR1 protein. This result suggests that the TLDc domain, found in OXR1 exons 12–16 and common in many proteins with nuclear function, has an alternate (undefined) role other than oxidative repair.
Respiratory metabolism generates reactive oxygen species (ROS) that can damage many cellular components such as DNA, proteins and lipids [1–3]. These ROS include such molecules as superoxide, singlet oxygen, hydroxyl radicals, and hydrogen peroxide, which can be produced as by-products of aerobic metabolism, oxidoreductase enzymes and metal-catalyzed oxidations. Hydrogen peroxide, while relatively stable, can react with Fe2+ via the Fenton reaction to produce hydroxyl radicals . ROS also play a role in cell signaling, where they can be involved in apoptotic processes, transcriptional activation or suppression programs, and cell signaling cascades . An increasing number of human diseases are associated with the damage that ROS cause, including cancer, autoimmune diseases, hypertension and neurodegenerative diseases [3, 6–10]. Oxidative damage is also considered a major factor in the mechanisms of aging and age-related diseases such as Parkinson’s and Alzheimer’s [11–13].
There are two modes of action that cells can use to combat the deleterious effects of ROS on cellular constituents: ROS prevention and DNA repair. The first includes molecules that inactivate or inhibit the formation of ROS, thus preventing damage from occurring in the cell. Such detoxification molecules include enzymes like superoxide dismutase, catalase, and glutathione peroxidase [14, 15], metabolites such as beta-carotene, lycopene and vitamins A, C and E, and minerals such as selenium and manganese . These systems either prevent ROS from forming or scavenge them before they can cause damage to vital components of the cell. The second means of defense against ROS involves DNA repair enzymes that correct chromosomal damage caused by ROS if they are not inactivated . These enzymes are primarily components of the base excision repair (BER) pathways in both Escherichia coli and higher eukaryotes, though nucleotide excision repair (NER), mismatch repair (MMR), and strand break repair mechanisms are also involved in repair of oxidative damage [18, 19].
The 8-oxoG modified base is a frequent oxidation product of guanine that is used as a biomarker of oxidative DNA damage . In E. coli, 8-oxoG pairs with adenine during replication, resulting in a G→T transversion if the lesion is not repaired. The MutM glycosylase (aka Fpg) functions to remove 8-oxoG from DNA, whereas the MutY protein removes the adenine opposite 8-oxoG, giving more time for MutM to work prior to replication . Nth (endonuclease III) and Nei (endonuclease VIII) are two other glycosylases that act principally on the damaged pyrimidines . E. coli mutants in most of these genes, either confer sensitivity to exogenous peroxide treatment, and/or display a spontaneous mutator phenotype as a result of their inability to repair spontaneous oxidative damage. Mammalian homologs of these glycosylases have also been described and are an area of intense study .
In a previous study using a human cDNA library to identify eukaryotic genes that either prevent or repair oxidative damage, the OXR1 gene was identified by its ability to suppress the spontaneous mutator phenotype of an E. coli nth mutH strain . The OXR1 function is highly conserved among eukaryotes, but is not found in prokaryotes. A deletion of the OXR1 gene in Saccharomyces cerevisiae causes an increase in sensitivity to hydrogen peroxide , and removal of a locus encoding all seven isoforms in Drosophila melanogaster results in lethality due to a defect in eclosion (hatching) . Silencing of OXR1 mRNA by 83% sensitized mosquitoes to the harmful effects of hydrogen peroxide in their drinking water. Interestingly, the silencing of OXR1 also resulted in decreased mRNA levels for both catalase and glutathione peroxidase, suggesting that (at least in insects) OXR1 may have a regulatory role in resistance to ROS . A study examining the expression of OXR1 in the mouse retinal cells after exposure to high levels of oxygen showed that OXR1 expression was increased by 3 days exposure, when photocells were resistant to hyperoxia and remained high in the strain that was resistant to hyperoxia. In the sensitive strain of mice, OXR1 levels declined in the retina and the photocells started to degenerate . Transgenic mice expressing the human ApoE-ϵ4 isoform of apolipoprotein ApoE have been characterized as exhibiting structural and functional abnormalities in their mitochondria [28–30]. A recent proteomic analysis of hippocampal cells from these mice identified OXR1 as one of the mitochondrial targeted gene products specifically downregulated following an ischemic insult . By contrast, the hippocampus cells from mice transgenic for ApoE-ϵ3 did not show mitochondrial abnormalities and did not exhibit a reduction for OXR1 transcripts following ischemic insult.
A recent report shows that the Bella mouse (bel), identified in a screen for mouse models of human movement disorders, lacks the OXR1 gene. These mice develop normally for 2 weeks following birth, but soon thereafter develop severe ataxia, do not show normal weight gain, and die within a month . The pathological properties of the bel mutant mouse were reversed by an OXR1 transgene, confirming that loss of OXR1 was responsible for these neurological defects. Histological analyses of these mice show increased cell death in the granular cell (GC) layer of the cerebellum. These authors also report that OXR1 is overexpressed in amyotrophic lateral sclerosis (ALS) patients and in mouse models of ALS, indicating a possible protective function of OXR1 in this neurodegenerative disorder. Both the human and yeast OXR1 genes are induced by heat and oxidative stress, and their proteins localize to the mitochondria . Localization of the OXR1 protein to mitochondria is significant since this organelle represents a major source of ROS production in the cell.
A bacterial papillation assay for OXR1 activity has been previously described [34, 35]. It utilizes a strain containing the lacZ cc104 allele  in an E. coli mutM mutY strain . In this background, the lacZ cc104 mutation spontaneously reverts at high frequency to wild type by a GC→ TA transversion (a common mutation found in DNA exposed to oxidizing agents). Overexpression of mutM alone completely eliminates GC→TA transversions in this strain, indicating they are primarily due to lesions repaired by the MutM glycosylase, predominantly 8 oxoG [34, 35]. Thus, by growth of colonies on minimal lactose plates containing Xgal and IPTG, isolated colonies show high levels of Lac + papillae. The expression of OXR1 suppresses oxidative damage, which can be easily detected by a lower frequency of papillation in this genetic background. In this study, we use this papillation assay to identify which region of the OXR1 protein is important for this suppressive function. Surprisingly, we find that the highly conserved TLDc domain, found in the extreme C-terminal region of most of the OXR1 isoforms, is not required for suppression of mutagenic activity in E. coli. Instead, the oxidation resistance function is located in a region of OXR1 encoded by exon 8, in a segment of the gene that encodes a putative helix-turn-helix structural motif.
Numbering of the OXR1 protein
These results strongly suggest that OXR1 made from pMV520 starts downstream of the lysine at codon position 200 of exon 7. Thus, the methionine encoded at position 225 of OXR1 exon 7 is designated as the first amino acid residue of “full length” OXR1 protein produced from pMV520 (see Figure 1). This full-length designation is only in respect to the region of OXR1 that is responsible for the anti-oxidant activity identified by the papillation assay in these experiments. Splice variants that carry exons not examined here (exons 1–6) may have additional functions, some of which may or may not be involved in oxidative repair. All exons listed in Figure 1, except the first 199 codons of exon 7 and exon 10, are found in the pMV520. Exon 10 is used as an alternative starting point for a splice variant that includes exons 10 and 12 through 16, which has no detectable oxidation antimutator activity (data not shown).
OXR1 N-terminal deletions

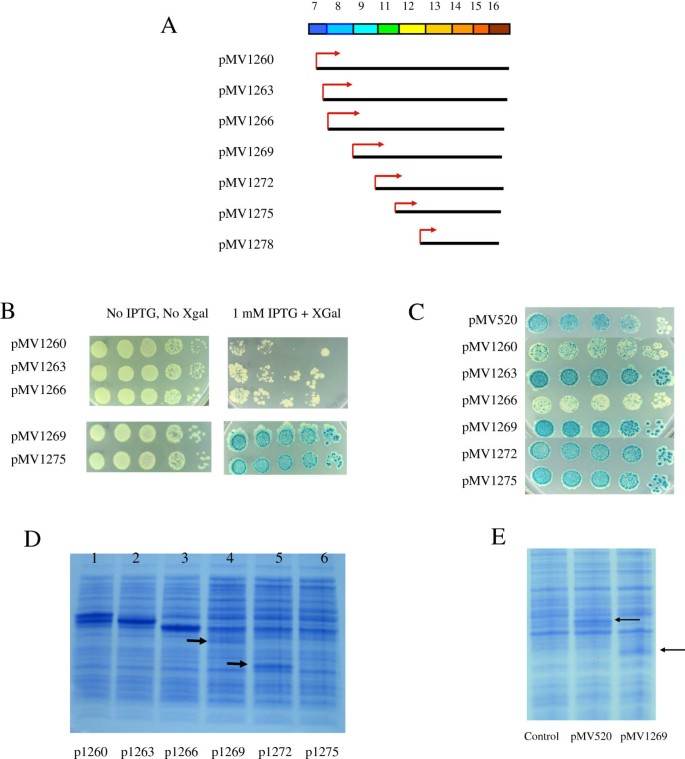

As is apparent in Figure 2B, constructs pMV1260, pMV1263 and pMV1266 all show decreased colony forming ability relative to the non-suppressing plasmids in the presence of IPTG. This effect is observed despite the fact that these plasmids encode the lacI repressor. The ability of these plasmids to suppress the mutagenic phenotype of MV4709 may be due to the lower viability (or slower growth rate) due to overexpression of a toxic protein. To control the amount of OXR1 deletion fragments produced in vivo, strain MV4709 containing these plasmids were transformed with a compatible plasmid overexpressing the LacI repressor (pMS421), resulting in higher levels of LacI repressor being present (relative to cells expressing lacI from only the Oxr1-expressing plasmids). As shown in Figure 2C, this increase in LacI repressor protein expression in vivo had the effect of eliminating the toxicity effect of these plasmids when plated in the presence of 1 mM IPTG, without eliminating the suppressive effects of OXR1 expression on papillation (except pMV1263; discussed below). The papillation assay in this background shows that a construct expressing OXR1 starting at exon 8 (pMV1266) suppresses the mutagenic phenotype of MV4709 without causing toxicity. As before, constructs starting at exons 9, 11 or 12 did not exhibit any suppressor activity.
The lack of papillation suppression by the OXR1 fragment encoded by pMV1269, pMV1272, and pMV1275, might be due to differential expression of the OXR1 deletion mutant proteins. Thus, extracts of cells containing these constructs were run on SDS-PAGE. As seen in Figure 2D, one observes a decrease in OXR1 fragment production upon loss of exon 8 (compare lanes 3 and 4), suggesting the importance of the protein domain encoded by exon 8 in OXR1 stability in E. coli. While the decrease in protein production seen with OXR1(9–16) probably explains the loss of toxicity observed with pMV1269 in Figure 2B, we do not believe that this decrease in protein level can explain the inability of OXR1 (9–16) to suppress papillation. This conclusion is based on the observation that similar levels of protein are seen in extracts of cells expressing full length OXR1 from pMV520 (which suppresses papillation) and the OXR1(9–16) fragment from plasmid pMV1269 (which does not suppress papillation – see arrows in Figure 2E). Thus, enough OXR(9–16) fragment is present in cells containing pMV1269 that if it did contain OXR1’s oxidation resistance activity, it would suppress the mutagenic phenotype of MV4709 host cells. Plasmid pMV1272 produces an OXR1 fragment starting at exon 11 and encodes a stable protein but is unable to suppress papillation, while a construct encoding an OXR1 fragment starting at exon 12 (pMV1275) did not produce a stable protein (Figure 2D, lanes 5 & 6, respectively). Finally, a construct expressing only exons 13-16 (pMV1278) also did not show suppression of papillation activity, although it did show a stable protein fragment when extracts were run on SDS-PAGE (data not shown). Overall, these results show that exons 9–16 are not required for the oxidation resistance activity exhibited by full length OXR1. This result was a little surprising, as this region of OXR1 shows the highest homology among comparisons to other OXR1 variants  and contains a conserved protein domain found in a number of eukaryotic proteins with nuclear function - the TLDc domain .
One other interesting feature is apparent in the results shown in Figure 2C. Under these conditions of limited expression of these OXR1 constructs, the plasmid pMV1263 did not exhibit suppressor activity, even though a plasmid missing an additional 31 residues (pMV1266) did show suppressor activity. This result is not due to a mutation in pMV1263, as sequencing of the promoter and OXR1 region of this construct did not reveal any differences relative to the wild type sequences. Furthermore, this differential suppression is not due to different levels of expression of the OXR1 fragments in these constructs, as both pMV1263 and pMV1266 show similar levels of protein expression on SDS-PAGE gels (see Figure 2D, compare lanes 2 and 3). One possibility for this observation is that the last 25 amino acid residues encoded by exon 7 may contain a control segment for OXR1 activity, which when exposed by removal of exon 7 residues 203–224, results in inhibition of the suppressor activity encoded within exon 8. Note however, that this inhibition can be relieved by further overexpression of this particular construct (when the LacI overproducer is absent - see Figure 2B). Further biochemical and mutational analysis of OXR1 activity within this region will be needed to verify this hypothesis. In addition, this result demonstrates that overproduction of a foreign protein does not in itself induce suppression of the mutagenic phenotype of MV4709.
C-terminal deletions of OXR1
Carboxy-terminal deletions of OXR1 were constructed to identify what distal exons of OXR1 are important for activity and/or stability of the protein. These plasmids are controlled by the IPTG-inducible P trc promoter; the OXR1 sequence starts at position 200 in exon 7 in all the constructs. As described previously, translation from these plasmids most likely initiates with the methionine at position 225 of exon 7. The C-terminal encoding endpoints in these plasmids are found at various points between exons 12 and 16 (see arrows in Figure 1). After transformation into MV4709 containing the LacI-producing plasmid pMS421, the ability of these constructs to suppress mutagenesis was assessed by the papillation assay.
Extracts of MV4709/pMS421 cells expressing these fragments were run on SDS-PAGE to examine the level of proteins produced. As seen in Figure 3C (lane 2), a doublet band is observed for the full length OXR1 expressed from pMV520. Given the close spacing of these bands, the difference in size between them is likely to be about 1–2 kDa. The doublet band of OXR1 is also observed in a second full-length OXR1 construct that promotes higher levels of protein (pMV1248 – see Figure 3C, lane 3) and with all four of the OXR1 C-terminal deletion constructs (see Figure 3C, lanes 4–7). Thus, the most likely explanations for the OXR1 doublet is either (1) a second restart site at the GTG site 13 codons downstream of the ATG start site, or (2) in vivo degradation of 10–20 amino acids from the N-terminus. A construct that initiates from a start codon placed at the beginning of exon 8 encodes a single discrete species (Figure 2D, lane 3). Thus, if the doublet is due to partial degradation, it is limited to sequences encoded within the last 31 residues of exon 7.
Internal deletions of OXR1 fragment containing OXR1 exons 8–13
A series of plasmids containing in-frame internal deletions of pMV1293 were constructed and tested for their ability to suppress the papillation of MV4709/pMS421. Plasmid pMV1294 contains an internal deletion that removes most of exons 8 and 9. This plasmid did not produce a stable band on SDS-PAGE, and not surprisingly, did not suppress papillation (Figure 4B & C). This result suggests that this region of the protein is important for stability of the OXR1 (8–13) fragment, as noted above for the N-terminal deletion plasmid pMV1269. Plasmid pMV1295, which is missing the latter half of exon 9, exons 11 and 12, did suppress papillation and showed a band on SDS-PAGE consistent with the size of the expected fragment (~15 kDa; see Figure 4C, lane 4). In fact, the suppression exhibited by pMV1295 was more efficient than that seen with pMV1293, which contains exons 8–13 (see Figure 4B, compare rows 2 and 4). In this case, papillation suppression was noted when high numbers of cells were plated (see Figure 4B, row 4). The only intact exon in pMV1295 is exon 8, showing again that this domain encodes the active suppressor function. Finally, a plasmid that contains exons 8–12 but is missing all but the first 12 residues of exon 13 (pMV1296), still suppressed papillation within single colonies, but to a lesser extent than pMV1293 (an effect likely due to lower amounts of this protein fragment relative to the OXR1 (8–13); see Figure 4C, compare lanes 2 and 5, see arrow). The most likely explanation for this observation is that a stability determinant of this protein is present in exon 13 and that its presence in pMV1295 stabilizes exon 8, enhancing its activity.
Internal deletions of full-length OXR1 (8–16)
A plasmid (pKM406) that encodes a protein that is missing both predicted helix-turn-helix structural features failed to suppress papillation on plates containing either 0.1 or 1.0 mM IPTG (Figure 6B, row 4). This result is due to the lack of significant protein production seen with this construct (Figure 6C), again arguing for the presence of a major stability determinant encoded by exon 8. A plasmid (pKM407) that encodes an OXR1 protein that contains the first (larger) predicted helix-turn-helix encoded by exon 8, but not the second one, was fully capable of papillation suppression at 0.1 mM IPTG (see Figure 6B, row 5). The construct also exhibited inhibition of cell growth at higher concentrations of IPTG, as observed with the full length OXR1 protein. A plasmid construct (pKM398) missing the first predicted helix-turn-helix feature, but containing the second one, was also tested. This construct was not able to inhibit papillation at 0.1 mM IPTG, but did so in the presence of higher amounts of IPTG (See Figure 6B). SDS-PAGE analysis of extracts of these cells (Figure 6C) shows that this effect could largely be attributed to the differences in stable protein production from plasmids pKM398 and pKM407 (compare lanes 4 & 6 in Figure 6C), making it hard to assign the supression of mutagenesis function to principally one or the other region in exon 8. Nonetheless, these results show that either predicted helix-turn helix region of exon 8 is sufficient to prevent oxidative damage. In addition, the first predicted helix-turn-helix region of exon 8 encodes the major stability determinant of the OXR1 protein. Finally, a plasmid construct encoding OXR1 deleted of the latter part of exon 8 and the beginning of exon 9 (pKM361), and a plasmid expressing OXR1 deleted of a predicted helix in exon 9 (pKM394), both formed stable proteins that were fully capable of papillation suppression at 0.1 mM IPTG (Figure 6B and C). These results are in agreement with those discussed above for N-terminal deletion mutants that exon 9 is not involved in oxidative damage protection.
Papillation results from plasmids expressing OXR1 derivatives
Exon 7 (200) – Exon 16 (45)
exon 7 (200) – exon 16 (44)
exon 7 (200) – exon 15 (20)
exon 7 (200) – exon 13 (39)
exon 7 (200) – exon 13 (15)
exon 7 (200) – exon 12 (31)
exon 8 (1) – exon 13 (39)
exon 7 (200) – exon 16 (44)
exon 7 (225) – exon 16 (44)
exon 8 (1) – exon 16 (44)
exon 9 (1) – exon 16 (44)
exon 11 (1) – exon 16 (44)
exon 12 (1) – exon 16 (44)
exon 13 (1) – exon 16 (44)
Δ exon 8 (14) – exon 11 (11)
Δ exon 9 (42) – exon 13 (10)
Δ exon 13 (13–39)
Δexon 8 (51) – exon 9 (16)
Δexon 9 (29–42)
Δexon 8 (9–36)
Δexon 8 (9–50)
Δexon 8 (37–50)
Quantitative analysis of OXR1 mutation suppression
Two other plasmids were also examined in the Lac+ reversion assay. Both pMV1258 (encoding a C-terminal deletion of exons 13–16) and pMV1295 (expressing only exon 8 and part of exon 13), which both showed high levels of suppression using the paplliation assay, also showed inhibition of mutagenesis in the Lac+ reversion assay to 84% and 69%, respectively, of the level exhibited by MV6543 containing the control plasmid. Again, the lack of full suppression with these plasmids using the Lac+ reversion assay can be attributed to the greater sensitivity of the papillation assay, or to differences in OXR1 activity of these mutants when grown in liquid culture versus solid media. Overall, however, the results of the papillation assays and the Lac + reversion frequencies are in good agreement; that is, that exon 8-encoded residues 9–36 play a critical role in the mutagenic suppression capability of the human OXR1 protein.
These results show that OXR1 amino acids 9–36 of exon 8 is a key region responsible for the oxidative antimutator activity of OXR1. This region is also an important stability determinant of the OXR1 protein expression in E. coli. While it might be concluded that this region is simply required for stability of OXR1, with the repair function encoded by a different region of OXR1, this supposition is not supported by consideration of results from all the deletion mutants. For instance, the analyses of the C-terminal deletion mutants shown in Figure 3 reveal that exons 13–16 are not required for the anti-oxidation activity exhibited by full length OXR1. This result was a little surprising, as this region of OXR1 shows the highest homology among comparisons to other OXR1 variants  and contains a conserved protein domain found in a number of eukaryotic proteins with nuclear function - the TLDc domain . Sequences present in exon 12 can also be ruled out as important for OXR1 activity, as plasmid pMV1292 expresses a stable protein (which includes this region), but does not suppress papillation (Figure 2 C&D). Most revealing however, is the result for plasmid pMV1295, which contains exon 8 as the only intact exon of OXR1 and is completely capable of suppressing papillation (Figure 4). Taken together, the results reported here suggest that exon 8, especially the region encoding a large predicted helix-turn-helix region, is the key determinant for the oxidation resistance function of the OXR1 protein.
The human gene NCOA7 encodes a protein that associates with the estrogen receptor, is targeted to the nucleus, and is highly homologous to OXR1 [24, 39]. The gene is expressed in a variety of tissues, but is most highly expressed in neurons. It has been proposed that NCOA7, by binding to the estrogen receptor, might alleviate the oxidative damage that results from estradiol metabolism . Other enzymes involved in the repair of DNA damage have also been identified that bind to the estrogen receptor [40–42] and may play a similar role in protecting DNA from oxidative damage. Durand et al. showed that C-terminal fragments of NCOA7 containing the TLDc domain were capable of oxidative damage repair in E. coli. Of note, however, is that the fragment of NCOA7 used in that assay also contained most of exon 9, the exon homologous to OXR1 exon 8 examined in this report. An alignment of these two exons is shown in Figure 5B. The C-terminal fragment of NCOA7 that was competent for oxidative repair in E. coli started with the methionine at position 15 of exon 9. At this position, the C-terminal fragment of NCOA7 contains the regions most homologous to OXR1 exon 8, the exon described here as being critical for OXR1 oxidative damage suppression. Although not part of the TLDc domain (which in OXR1 starts near the end of sequence encoded in exon 12) a comparison of OXR1 sequences from a variety of organisms shows that exon 8 is highly conserved, especially among higher eukaryotes.
OXR1 and its close homolog NCOA7 are produced in many different forms either as a result of alternative splicing, or alternative transcription start sites. Most of these isoforms include exon 8 of OXR1, or its counterpart (exon 9) of NCOA7, indicating that their antioxidant functions are key features of the gene products. However, there are several isoforms that include only the C-terminal TLDc domain that lack exon 8. The best characterized of these isoforms is the OXR1 C7C variant originally described by Fischer et al. and its human counterpart. This variant includes OXR1 exon 10, which is not found in other variants of OXR1. The human form of this variant of OXR1 lacks antioxidant activity, as no suppression of oxidative mutagenesis is seen when this protein is highly expressed in the E. coli mutM mutY strain (unpublished observations). This result eliminates the possibility that exon 10 can replace the oxidation resistance function of exon 8. These results suggest that in addition to the conserved oxidation resistance function, these highly conserved proteins may have additional functions that have not been characterized and that this hypothetical function is contained within the highly conserved C-terminal TLDc domain.
Oliver et al. have recently reported that loss of mouse OXR1 (mOXR1) resulted in the onset of an ataxia phenotype two weeks after birth in bel mice, followed by death within the first month of life. The authors found that the cerebellar granual cell layer (GCL) of these mice were sensitive to hydrogen peroxide more than normal controls, an effect that could be reversed by lentiviral expression of an OXR1 transgene. Notably, using a gene-trap construct, they found that in vivo expression of the C-terminal region of mOXR1 (mOXR1-C), which corresponds to exons 12–16 of hOXR1, was capable of reversing the neurological phenotype and early death of bel mouse mutant. In addition, they show that mOXR1-C expression could protect both wild-type and bel mutant GCL cells from hydrogen peroxide-induced apoptosis. On the contrary, we find that the C-terminal region of the hOXR1 was neither necessary or sufficient for suppression of oxidative damage in E. coli, and instead, that the function required for the antimutator phenotype resides in exon 8, which is present in both full-length and intermediate splice variants of hOXR1.
Combining the results of both studies, a model emerges regarding the different functional characteristics of the mammalian OXR1 protein. The TLDc domain in the C-terminus of mOXR1 is clearly required for a key function of OXR1 that protects cells from oxidative damage, as shown by the study of Oliver et al.. These authors go on to show that the mOXR1-C domain can interact with H2O2 via oxidation of a reactive cysteine (Cys753), suggesting that OXR1’s oxidative antimutator function may be the result of a direct interaction between the protein and reactive oxygen species. However, as the authors noted, the rate constant for this reaction was thousands of times lower relative to antioxidants that work in this manner (such as catalase and peroxiredoxins), leading them to suspect that the TLDc domain of mOXR1 has another type of function, or perhaps operates in a regulatory capacity. A regulatory role of OXR1 has been suggested by Jaramillo-Gutierrez et al. who showed that silencing of OXR1 in mosquitoes resulted in lower levels of transcripts coding for enzymes such as catalase and glutathione peroxidase, proteins that act directly in detoxification of ROS. In this study, using our E. coli assay, we find that an oxidative antimutator function is not found in the hOXR1 C-terminal region, leading to the greater likelihood that this domain may instead have regulatory role, perhaps after an interaction with certain types of reactive oxygen species. Along these lines, the dispensability of the hOXR1 C-terminal region in our E. coli assay is not unexpected if the TLDc domain’s principal role in mammalian cells is to regulate antioxidative operons, an effect not likely reproducible in E. coli.
We favor a model of hOXR1 where an antioxidant activity is encoded by exon 8, with the C-terminal domain conferring a regulatory region that responds to ROS. At least in E. coli, the proposed C-terminal regulatory region is not required for antioxidant function. Splice variants that include full length or intermediate species of hOXR1 may then reflect the need for both antioxidant activity and antioxidant-regulatory functions, whereas in tissues where only the short C-terminal region of hOXR1 is present may require only the regulatory feature of the OXR1 protein to protect from ROS. The study by Oliver et al. showed that the shorter mOXR1-C form is present in the brain at low levels, though it is as highly expressed in the cerebellum as full length mOXR1. Such differences may reflect the need for regulatory capabilities of mOXR1 more so in the cerebellum than in the rest of the brain, where both an oxidative antimutator function and a regulatory region are required. As mentioned in the Introduction, these authors also reported an upregulation of intermediate forms of OXR1 in ALS human biopsy samples, as well as in SOD1 mutant mice (a mouse model of ALS). The intermediate forms of OXR1 contain the upstream oxidative antimutator function we have identified here in exon 8 and may reflect the need for this activity as a protective function in ALS patients. It would be interesting to know if mutations in the hOXR1 gene also play a role in sporadic cases of ALS.
What does OXR1 the exon 8-encoding function do? The region of exon 8 required for oxidation resistance shares homology only with other members of the OXR family of proteins suggesting they have a unique function not shared with other proteins that contribute to oxidative stress resistance. However, it has been observed that OXR1 can suppress mutagenesis in bacteria, indicating it does not require additional human proteins for function and can suppress mutagenesis resulting from mutations in genes inactivating several different types of oxidative lesions . These results make it more likely that OXR1 exon 8-encoded region prevents rather than repairs oxidative damage, since oxidative damage repair enzymes typically recognize only a single, or a set of structurally similar lesions. Such a role for OXR1 as an antioxidant protein is further supported by studies of oxr1 deletion mutants of yeast, which exhibit elevated levels or ROS, suggesting its function is to reduce ROS levels (Fenton and Volkert, unpublished results).
The human OXR1 gene exon 8 encodes a function required for the suppression of oxidative damage. This oxidative resistance function is distinct from the highly conserved TLDc domain found in the C-terminal region of OXR1. A model is proposed that OXR1 consist of two separable functions involved in oxidative resistance: a C-terminal domain that has a regulatory role in inducing oxidative resistance functions in response to oxidative damage, and an internal region of the protein encoded by exon 8 that possesses a antimutator “protective” function against reactive oxygen species.
Plasmid pMV520 has been described . C-terminal deletion mutants of OXR1 were generated by cloning PCR-generated fragments of OXR1 into the Eco R1 and Xma I sites of expression vector pTrc99a. In these plasmids, OXR1 fragments are expressed from the Ptrc promoter. The endpoints of the OXR1 deletions are indicated by the arrows in Figure 1. Plasmids containing N-terminal deletions of OXR1 were generated by cloning PCR-generated fragments of OXR1 into the Nde I and Sac I backbone of pTP905 (A. Poteete, unpublished). In these constructs, OXR1 fragments are expressed from the IPTG-inducible Pmac promoter (P moderate lacUV5-like) . The Pmac promoter sequence (TTTACATTGTGAGCGGATAACAAT ATAAT) contains a lac operator (italicized) between the −35 and −10 regions. These OXR1 N-terminal deletion vectors also contain an rrnT1 terminator downstream of the gene fragments, which confers greater stability to transcripts resulting in higher expression levels (unpublished observations). Two of these vectors (pMV1260 and pMV1263) start within the latter part of exon 7; the other plasmids in this series were constructed by adding a start codon in front of the first codon of exons 8, 9, 11, 12 and 13, respectively.
A plasmid pMV1293 was constructed that encoded an OXR1 fragment starting with exon 8 and ending at residue 39 of exon 13. A PCR product (using a derivative of pMV520 as a template) was cloned into the Nde I-Xba I backbone of pMV1266, resulting in removal of the rrn T1 terminator. A series of internal (in-frame) deletions of pMV1293 were constructed by digestion of the plasmid with restriction enzymes and religation of the resulting backbone. Plasmids pMV1294, pMV1295 and pMV1296 were generated by digestion of pMV1293 with Cla I, Mfe I and Nco I, respectively; the Cla I digestion was filled-in by T4 polymerase and dNTPs. The backbone (ori-containing) fragments were religated and transformed into competent E. coli cells overexpressing LacI (W3110 lacIq). The resulting plasmids contain in-frame deletions of one or more of the OXR1 exons present in pMV1293; the residues absent in the OXR1 proteins encoded by these plasmids (relative to pMV1293) are listed in Table 1. Plasmid dilutions of pMV520 were used as a template for all PCR reactions.
A second set of internal deletions within a full length OXR1 protein (defined here as the protein encoded by the exons listed in Table 1, with the exceptions of exons 7 and 10) was generated by λ Red recombineering [45, 46]. Cassettes encoding a kanamycin-resistant determinant flanked by Not I sites (generated by PCR) were recombined into pMV1266 resulting in various deletions of exons 8 and/or 9. An extra G nucleotide was included in one of the primers, so that following digestion of the modified pMV1266 plasmids with Not I and religation of the linearized plasmid, regions of OXR1 containing exon 8 and/or 9 were replaced with GCGGCCGCG. The resulting plasmids thus encoded in-frame deletions of OXR1, where the deleted regions of the OXR1 protein were replaced with 3 alanines. A summary of all the plasmids constructed for this study appears in Table 1. All plasmids modifications constructed in this study were verified by sequencing. Primers sequences used to generate the plasmid constructs are available upon request.
Full-length OXR1 protein and various truncations/mutations of OXR1 were expressed in strain MV4709 (mutM::Tn19 mutY::cat), which also carries the mutant lacZ cc104 allele . This lacZ allele reverts to wild type by a GC to TA transversion, a common mutation known to occur during oxidative stress due to the high levels of 8-oxoG formation. Thus, one can follow the spontaneous oxidative damage occurring in this strain by the presence of blue papillae in single white colonies on plates containing Xgal and IPTG . In order to moderate expression of OXR1 and mutant derivatives, host cells also contained the compatible plasmid pMS421 (a pGB2 derivative) that overexpresses the LacI repressor. Fresh cultures of MV4709 (mutM mutY) containing pMS421 (MV6543) and plasmids expressing wild type and various deletions of OXR1 were grown from overnight stocks to 2 x 108 cells/ml in LB media containing 100 μg/ml ampicillin, 40 μg/ml spectinomycin and 20 μg/ml streptomycin. Dilutions of the cultures were spot titered on minimal plates containing 0.2% glucose, 1X A salts, 1 mM MgSO4, 0.5 mg/ml phenyl-β-D-galactopyranosie (P-Gal), 50 μg/ml carbenicillin, 40 μg/ml X-gal and various concentrations of IPTG (see figure legends). Mutagenesis was observed by the high density of blue papillae present in single white Lac + colonies; suppression of papillation is indicative of OXR1 activity.
The Lac+ reversion assay was performed essentially as described by Poteete , with some modifications. Small colonies of MV6543 cells (MV4709 with pMS421-StrepR-SpecR) containing various OXR1 fragment-producing plasmids (AmpR), were picked from LB plates containing ampicillin (100 μg/ml), spectinomycin (20 μg/ml), streptomycin (10 μg/ml), and resuspended in LB containing these same concentrations of drugs, and in addition, either 0.1 mM or 1 mM IPTG (see legend to Figure 7). Between 3–6 colonies were picked for each strain containing an OXR1 fragment-producing plasmid. The cultures were grown overnight at 37oC with aeration. Cells were collected by centrifugation and resuspended in 1 volume of 1x M9 salts. Undiluted and diluted samples of cells (between 107 and 108 total) were plated on M9 minimal lactose plates to determine the number of Lac + revertants, and on LB plates to determine the total number of cells plated. M9 minimal plates contained 0.2% lactose and were supplemented with thiamine at a concentration of 5 μg/ml . Lac + reversion frequencies are reported as the number of Lac + revertants per 108 cells plated. To reduce background growth on the minimal lactose plates, 109 scavenger cells, TP889 (ΔlacZ::cat)  were plated along with various amounts of the test cultures. The scavenger cells cannot revert to Lac+, but deplete the plates of trace energy sources preventing late-arising colonies from appearing, and in turn, lead to more accurate frequencies of Lac + reversion. The scavenger cells were prepared by growing a 50 ml culture of TP889 in LB overnight, collecting cells by centrifugation, washing once with cold 1x M9 salts and resuspending in 5 ml cold 1x M9 salts; a total of 100 μl of scavenger cells were plated with each of the test strains on M9 minimal lactose plates.
OXR1 Fragment production in vivo
SDS-polyacrylamide gels were used to assess the presence of stable OXR1 protein fragments. Cultures (5 ml) were grown to 2 x 108 cells/ml in LB containing 100 μg/ml ampicillin, 40 μg/ml spectinomycin and 20 μg/ml streptomycin. IPTG was added to 1 mM concentration and cells were aerated by rolling for 2.5 hours. The cultures were then collected by centrifugation and resuspended in 100 μl of 50 mM Tris–HCl, 100 mM NaCl, 1 mM EDTA, 10% glycerol. Cells suspensions were diluted with an equal volume of H20 and then mixed with an equal amount of 2x SDS buffer. Samples were boiled for 3 minutes, run overnight at 50 volts on 10% polyacrylamide gels using the Tricine system  or 12% polyacrylamide using Tris buffers as previously described . Gels were stained with Coomassie Blue. All the protein bands identified in this study as OXR1 full-length protein or proteins fragments were dependent upon the addition of IPTG. Cells not grown in the presence of IPTG showed the same pattern as the pBR322 control. A plasmid derivative of pMV1266 that had a frameshift mutation in the OXR1 gene resulted in the same pattern on these SDS-PAGE gels as pBR322-containing cells.
This work was supported by grant CA100122 from the National Institutes of Health to MRV. We thank Column O’Donnell and Nan Maug for technical assistance.
